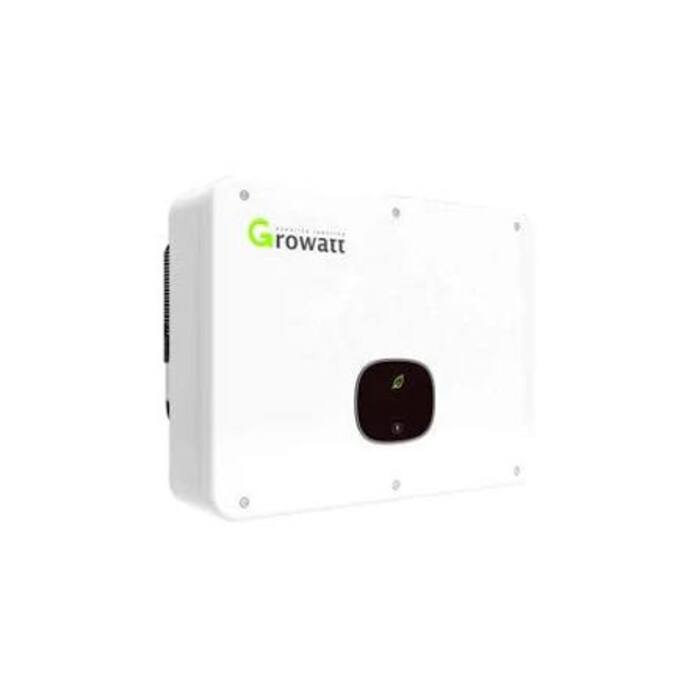

Maximize the yield of your commercial photovoltaic installations with the high-performance Growatt MID 17KTL3-X. This transformerless, three-phase grid-tied inverter boasts a maximum efficiency of 98.75% and features dual independent MPP trackers, allowing for flexible string sizing and optimal power generation even with diverse array orientations.

Core Performance Data:

Maximum Recommended PV Power: 25,500W

Rated AC Output Power: 17,000W

Maximum AC Apparent Power: 18,800VA

Maximum Efficiency: 98.75% (European Efficiency: 98.6%)

Advanced Input/Output Specifications:

MPP Trackers: 2 independent MPP trackers with 2 strings per tracker.

Max Input Current (per MPPT): 27A / Short-circuit current: 33.8A.

Nominal AC Voltage: 230V/400V (Range: 340-440V).

Max Output Current: 27.4A.

MPPT Voltage Range: 200V-1000V (Start voltage: 250V).

Safety & Intelligent Features:

Equipped with an intuitive touch key and OLED display.

Comprehensive safety suite including Type II SPD on both AC and DC sides, DC reverse polarity protection, and ground fault monitoring.

Features smart air cooling and is IP65 rated for reliable operation in demanding environments (Operating temperature: -25}C to +60}C).

For detailed wiring guidelines, precise grid frequency parameters, and full compliance data, please consult the growatt-mid-17ktl3-x.pdf.
