Name: Hanwha Q.Cells Q.PEAK DUO BLK-G9 335 Rev1 335 Wp
Brand: Hanwha Q.Cells
SKU: 49020
Price: 75.00 EUR

Solar Panel / Mono / Hanwha Q.Cells - Q.PEAK DUO BLK-G ...

Solar Panel

Hanwha Q.Cells

Q.PEAK DUO BLK-G9 335 Rev1

Q CELLS Q.PEAK DUO BLK-G9 335 Wp monocrystalline solar panel, featuring Q.ANTUM DUO Z half-cell technology and an all-bla ...

0.0

(0 customer ratings)

75,00 EUR / pcs. 0,224 EUR / Wp
Private sale

Price List

Item number	49020 (1961 views)
Availability	11 pcs / from immediatly
Minimum Order Quantity	11 pcs
Shipping Type	Pickup only
Seller Information	Private provider
Registered since	28.08.2026
Category	Solar Panel / Crystalline / Mono

Request now

Description

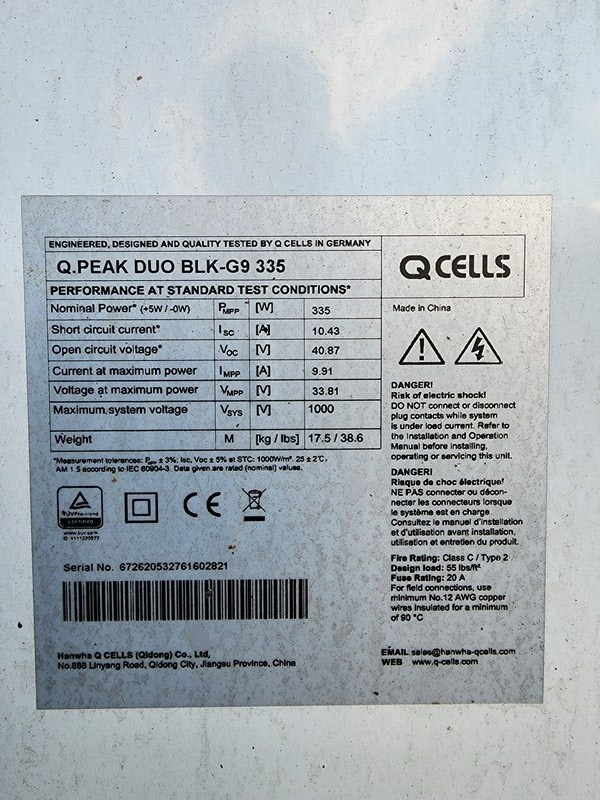

Electrical Characteristics (STC Performance*)

Maximum Power (Pmax): 335 Wp
Voltage at Pmax (Vmpp): 33.81 V
Current at Pmax (Impp): 9.91 A
Open Circuit Voltage (Voc): 40.87 V
Short Circuit Current (Isc): 10.43 A
Module Efficiency: ? 19.4%
Maximum System Voltage: 1000 V

*Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000 W/m², cell temperature 25 }C.

Mechanical Characteristics & Components

Dimensions: 1673 mm × 1030 mm × 32 mm (including frame)
Weight: 17.5 kg
Cell Number: 120 monocrystalline Q.ANTUM half-cells
Frame Type: Black anodized aluminum
Front Glass: 2.8 mm thermally pre-stressed glass with anti-reflection technology
Junction Box: IP67 protection class, equipped with bypass diodes
Cables & Connectors: 4 mm² solar cable (? 1200 mm) with Stäubli MC4 connectors

Temperature Coefficients & Load Resistance

Temperature Coefficient of Pmax: -0.35% / }C
Temperature Coefficient of Voc: -0.27% / }C
Nominal Module Operating Temperature (NMOT): 43 ± 3 }C
Mechanical Load Resistance: Snow load up to 6000 Pa / Wind load up to 4000 Pa

General information

Manufacturer	Hanwha Q.Cells
Type	Q.PEAK DUO BLK-G9 335 Rev1
Category	Mono
Kind	Used products
Condition	Used
Age	4 years
Spare part	No

Details

Nominal capacity	335 Wp
MPP current	9.91 A
MPP voltage	33.81 V
Short circuit current	10.43 A
Open circuit voltage	40.87 V
Max. Voltage	1000 V
Lenght	1673 mm
Width	1030 mm
Depth	mm
Weight	18 kg
Frame	Black
Backside	White
