As an official partner of renowned manufacturers, we offer photovoltaic modules, inverters, and energy storage systems from a single source.

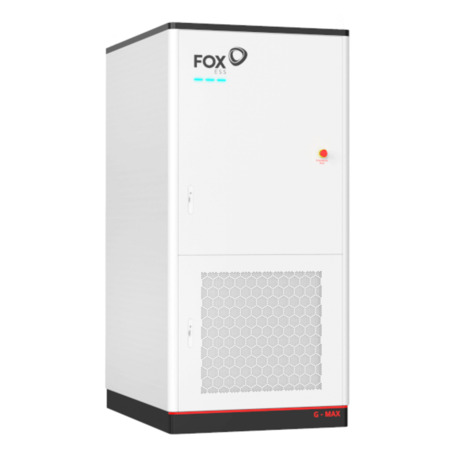

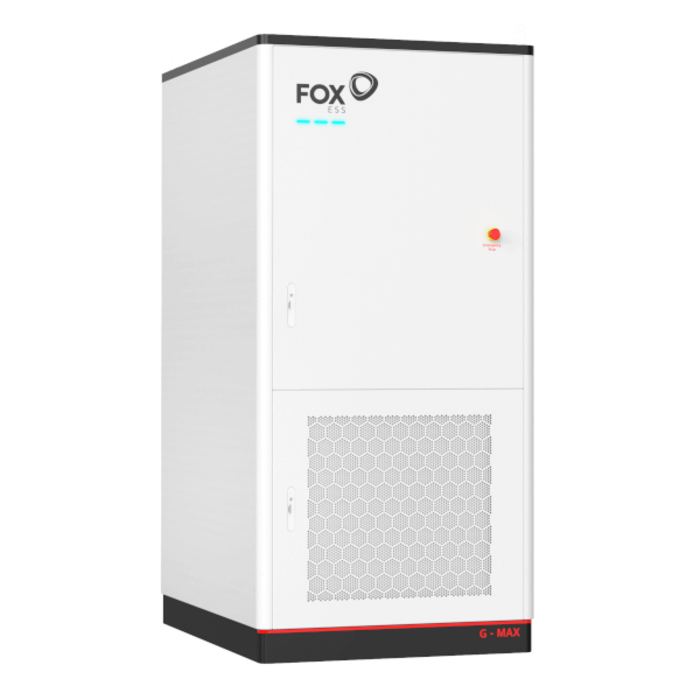

The G-MAX GM215kWh-100kW-2h all-in-one battery storage system from Fox ESS combines powerful technology with a sophisticated design, offering an efficient solution for large-scale energy storage. The G-MAX series embodies the "all-in-one" design philosophy: a long-life battery, an intelligent BMS, a powerful PCS, a preventative safety system, an intelligent distribution system, and effective heat dissipation management are all integrated into a standard container. This allows for particularly easy installation. With a storage capacity of 215 kWh and a power output of 100 kW during a 2-hour discharge, the system is ideally suited for commercial and industrial applications.
The G-MAX series embodies the "all-in-one" design philosophy: a long-life battery, an intelligent BMS, a powerful PCS, a preventative safety system, an intelligent distribution system, and effective heat dissipation management are all integrated into a standard container. This enables exceptionally easy installation. With a storage capacity of 215 kWh and a power output of 100 kW during a 2-hour discharge, the system is ideally suited for commercial and industrial applications.
... Product advantages:
High efficiency of up to 98.6%
Easy installation and maintenance
Parallel connection of up to 10 systems (5x in off-grid mode)
Product specifications:
Capacity: 215 kWh
Power: 100 kW
DC voltage: 672–876 V
Protection class: IP54
Operating temperature: -25 }C to +55 }C
Cooling type: Liquid cooling
Operating temperature: -25 }C to +55 }C for versatile applications
Dimensions (W x D x H): 1040 x 1500 x 2200 mm
Weight: approx. 2,500 kg
This offer is directed to tradepersons only
| File name | File type |
|---|---|
| Fox ESS G-Max Datenb ... |
Customer Review
As an official partner of renowned manufacturers, we offer photovoltaic modules, inverters, and energy storage systems from a single source.
The G-MAX GM215kWh-100kW-2h all-in-one battery storage system from Fox ESS combines powerful technology with a sophisticated design, offering an efficient solution for large-scale energy storage. The G-MAX series embodies the "all-in-one" design philosophy: a long-life battery, an intelligent BMS, a powerful PCS, a preventative safety system, an intelligent distribution system, and effective heat dissipation management are all integrated into a standard container. This allows for particularly easy installation. With a storage capacity of 215 kWh and a power output of 100 kW during a 2-hour discharge, the system is ideally suited for commercial and industrial applications.
The G-MAX series embodies the "all-in-one" design philosophy: a long-life battery, an intelligent BMS, a powerful PCS, a preventative safety system, an intelligent distribution system, and effective heat dissipation management are all integrated into a standard container. This enables exceptionally easy installation. With a storage capacity of 215 kWh and a power output of 100 kW during a 2-hour discharge, the system is ideally suited for commercial and industrial applications.
... Product advantages:
High efficiency of up to 98.6%
Easy installation and maintenance
Parallel connection of up to 10 systems (5x in off-grid mode)
Product specifications:
Capacity: 215 kWh
Power: 100 kW
DC voltage: 672–876 V
Protection class: IP54
Operating temperature: -25 }C to +55 }C
Cooling type: Liquid cooling
Operating temperature: -25 }C to +55 }C for versatile applications
Dimensions (W x D x H): 1040 x 1500 x 2200 mm
Weight: approx. 2,500 kg
