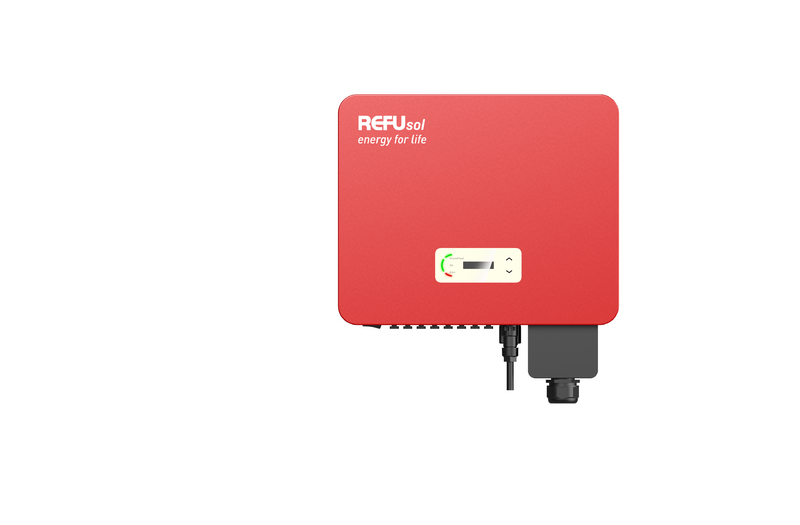

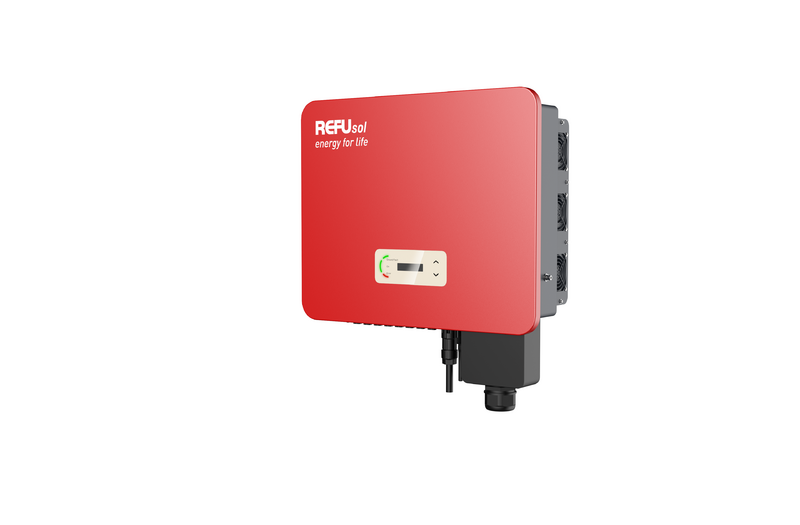

REFU Elektronik REFUsol 33K-3T - Three-phase string inverter with 3 MPPT

Red at heart, green at the finish line, with a 10-year manufacturer's warranty

Nom. / Max. AC power: 33 kW / 37 kVA

AC rated voltage: 3P/N/PE: 230/400 Vac

DC MPPT voltage range: 510...850V

Max. / EU efficiency: 98.6% / 98.2%

Standard interfaces: USB, RS485

Optional interfaces: Ethernet logger, WiFi logger

DC switch: integrated

Dimensions (HxWxD): 480 x 585 x 220 mm

Weight: 36 kg

Scope of delivery: Inverter, AC/DC plug parts, manual, mounting plate, COM terminal

Warranty: 10 years

Advantages: 3 MPP trackers, max. efficiency up to 98.6%, compatible with older REFUsol inverters, permanent AC overload capacity of 110%, suitable for repowering applications


The innovative REFUsol 25K inverter offers an advanced solution for commercial and industrial PV systems. With its 3 MPP trackers, it can be adapted to different system designs and individual requirements. Thanks to its compact design and high power density per weight, it is versatile and can be used on roofs or in ground-mounted systems. This inverter is ideal for small to medium-sized projects.


The simple integration of each inverter via the REFUlog portal enables efficient remote monitoring. The REFUlog portal is provided free of charge during the generous 10-year warranty period. Various options such as Ethernet or WLAN loggers are available for easy connection to local networks.

Please note

Please always enquire about the available quantity before ordering, as the inverters are also sold through other distribution channels.

These inverters are sold with a warranty. The warranty must be settled directly with the manufacturer. The exact details can be found in the data sheet.

All information is provided without guarantee. Images may vary. Prices are net. Shipping costs are available on request. Please contact us using the “Contact” button.

This is freight forwarding goods. The delivery time is approx. 4-6 working days within Germany after receipt of payment. Delivery times to other countries may vary.
