Trina Vertex S+ TSM-455NEG9R.28 455 Wp Glas-Glas Solarmodul
Trina Vertex S+ TSM-455NEG9R.28 455 Wp glass-glass solar module
Trina Vertex S+ TSM-455NEG9R.28 455 Wp glass-glass solar module
Delivery time of 1x pallet (36 pcs.): 2-4 working days after receipt of payment
Shipping costs: on request
Small dimensions, high performance: Maximize your yield with our double glass module for residential and commercial roofs. Our universal solution offers you peak outputs of up to 455 W and a module efficiency of 22.8 % thanks to our high-density cell connection technology.
By using our multi-busbar technology, you benefit from improved absorption, lower series resistance, optimized current dissipation and increased reliability. This not only reduces your installation costs, but also increases the overall performance and efficiency of your system.
Our modules are extremely resistant to fire and difficult environmental conditions. They can easily cope with a shear load of 5,400 Pa and a wind load of 4,000 Pa (test loads).
In addition, we offer you a 25-year product guarantee on the workmanship and a 30-year performance guarantee. Thanks to our N-type technology, you only experience a degradation of 1% in the first year and only 0.4% in years 2-30.
Our modules are highly compatible with a wide range of inverters, optimizers and mounting systems, giving you flexibility in your choice of components.
With their perfect size and low weight, our modules are easy to handle and enable optimized transport costs. In addition, we offer flexible installation solutions to meet your individual system requirements.
PRODUCT FEATURES
? Output: 455 Wp
? Frame color: black anodized
? Cell technology: monocrystalline
? Number of cells: 144 pieces
? Dimensions: 1762 × 1134 × 30 mm
? Weight: 21.1 kg
? Cable length plus: 1100 mm
? Cable length minus: 1100 mm
Please note: Die Mindestbestellmenge beträgt 36 Pieces, Mindermengen können angefragt werden.
| Per pcs | 58,00 EUR |
| Per Wp |
0,127 EUR
|
| excl. VAT. (19 %) |
| File name | File type |
|---|---|

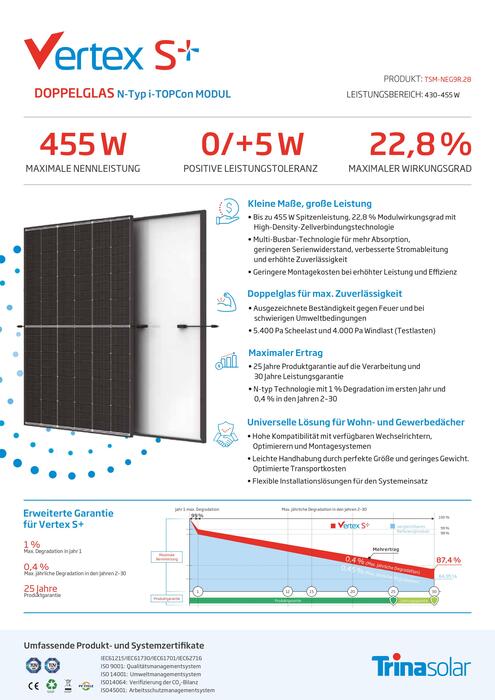

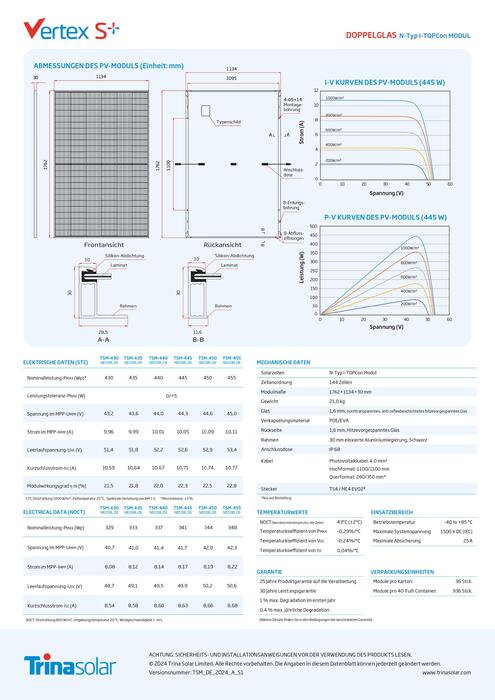

| Datasheet_Vertex S+_ ... |
