SMB Solar Multiboard SMB1780

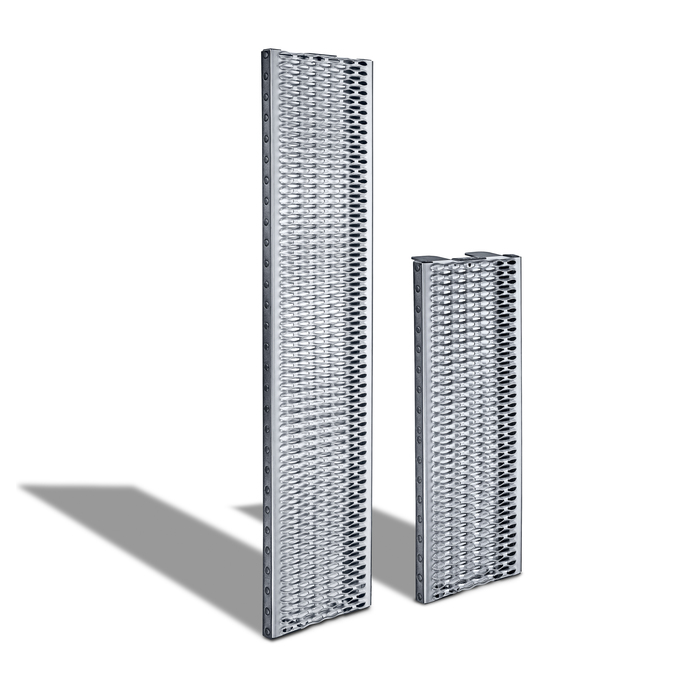

The Multiboard SMB1780 from SMB Solar is a light, non-slip and mobile working platform that allows work (maintenance, cleaning, repair) on the PV modules without damaging the modules.

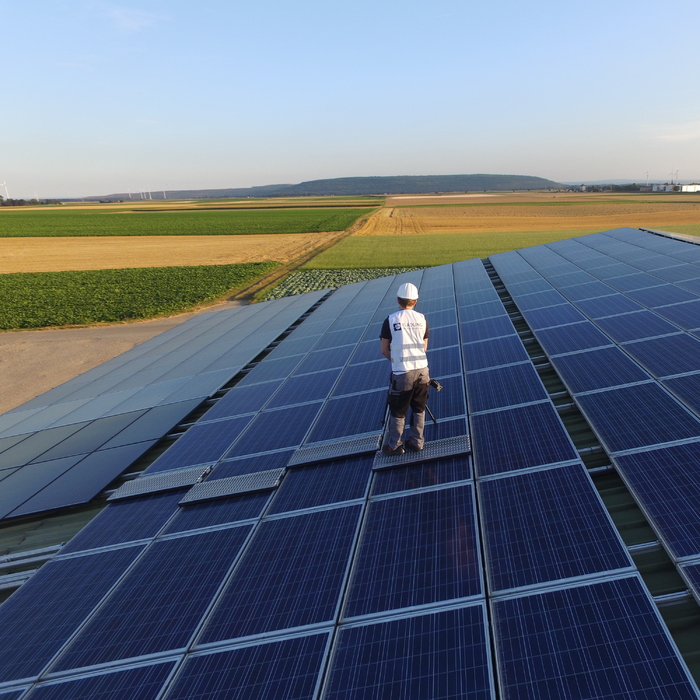

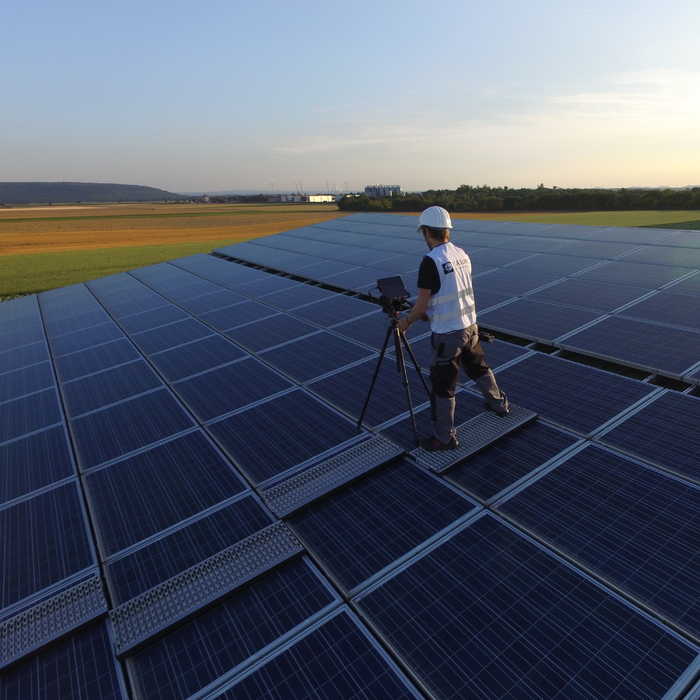

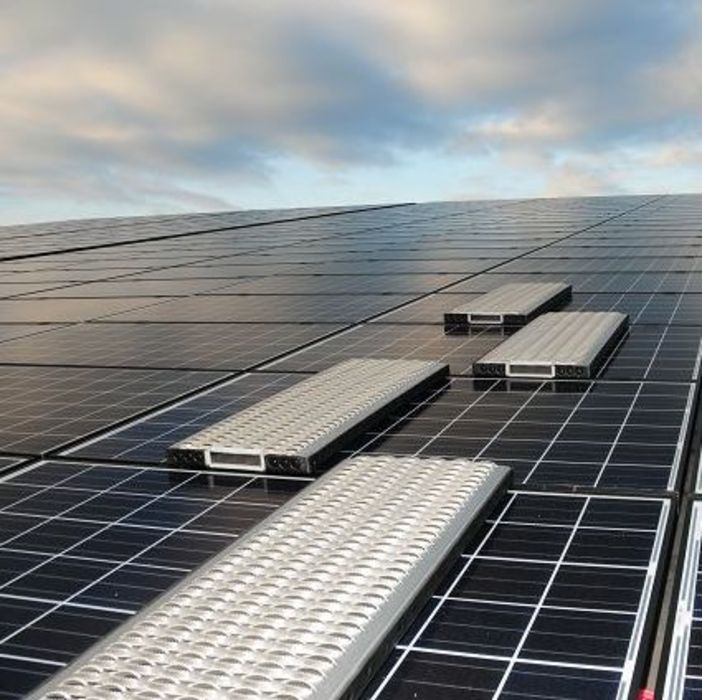

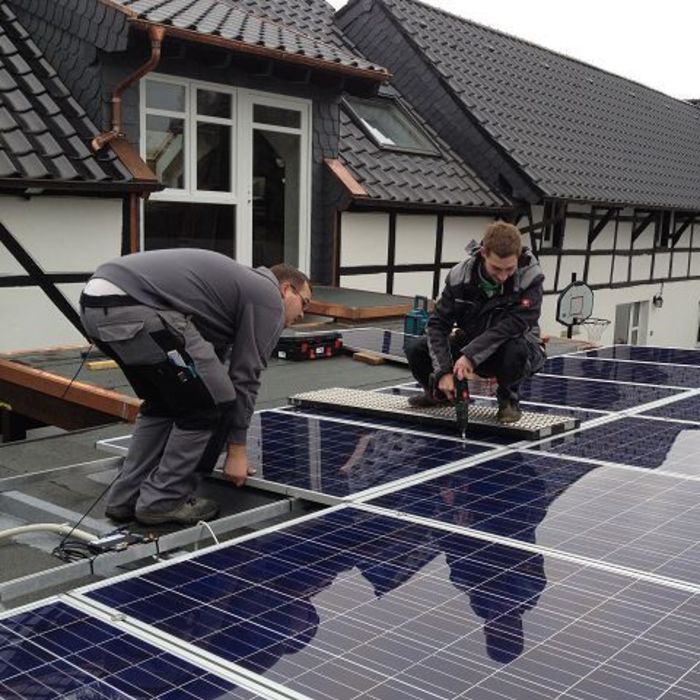

For this purpose, the aluminium multiboards are simply placed on the solar modules. For extra safety, the tabs on the upper edges of the boards are simply pushed between the modules. In this way, solar technicians and solar cleaners can enter the boards, which provide a secure footing with their non-slip surface structure.

Through the combination of several boards you can directly reach any place in the photovoltaic system.

The surface of the SMB Solar Multiboards has been tested by the Institut für Arbeitsschutz der Deutschen Gesetzlichen Unfallversicherung. This corresponds to the DIN standard DIN 51 130 R13 V10.

Specifications:

Length: 1780 mm

Width: 400 mm

Height: 60 mm

Weight: 10,0 kg

Base support with aluminium and anti-slip surface

UV resistant PE protective layer, glued and mechanically fastened

Aluminium brackets incl. vulcanised rubber coating, thickness of the brackets 6 mm +/- 0.5 mm

Insertion depth into the distance gap 55 mm +/- 5 mm

Handles centered at the bottom of the board, width 150 mm +/- 3 mm, height 30 mm +/- 2 mm

Max. load 150 kg - only one person per board allowed

The total mean value of the roof slope according to DIN 51 130 may be > 40} (R13 V10).
