Solar Storage / Lithium / Pytes - E-BOX-48100R

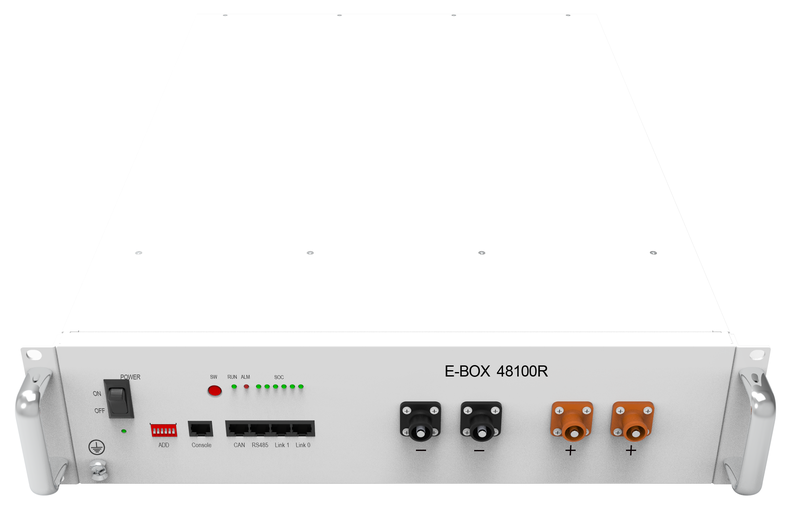

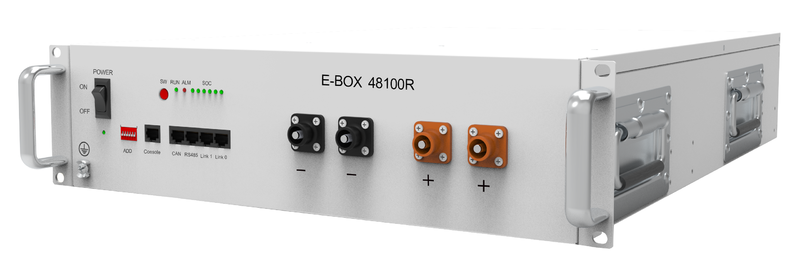

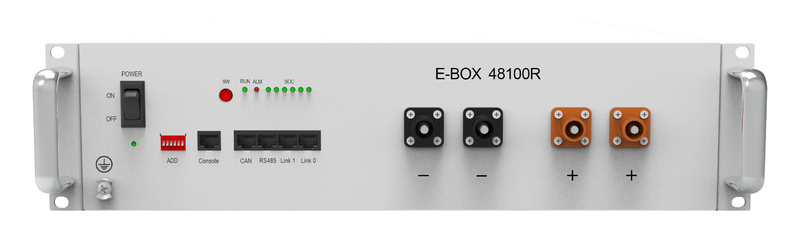

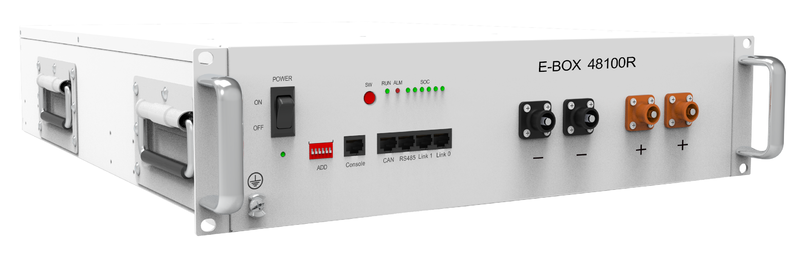

Pytes - E-BOX-48100R

5,12KWH 51,2V BATTERIE E-BOX-48100R
Item number
29938 (6755 views)
Availability 360 pcs / from immediatly
Minimum Order Quantity
1 pcs
Shipping Type On request
Seller Information
Business provider
Registered since 28.03.2022
Category Solar Storage / Lithium
Description

E-BOX-48100R-Serie der neuesten Generation der LFP-Batterie für das Heimenergiespeichersystem. Wir bieten eine sicheren, durchdachten und leistungsstarken Standard-LFP-Akku an. Der Akku ist kompakt, einfach zu installieren, wartungsfrei und kann als Baustein von Energiespeichersystem durch Parallelschaltung einfach erweitert werden. Er ist die optimale Ergänzung zu unseren hybriden Wechselrichtern und mach Sie und Ihr Haus Autark.

Technische Spezifikationen


Battery ModelE-BOX-48100R
ChemistryLFP
Nominal Voltage51.2V
Voltage Range47.5V-58V
Nominal Capacity100Ah
Nominal Energy5.12kWh
Unit DimensionL440mm* W620mm* H117mm (2.6U)
Unit Weight51kg
Standard Charge Current50A
Maximum Charge Current50A
Standard Discharge50A
Maximum Discharge Rate50A
Round-Trip Efficiency?95%
Communication ProtocolRS232, RS485, CAN
Cycle Life?6000cycles
Calendar Life?10years
Operating Temperature-10°C~50°C
Connect styleParallel
Storage TemperatureWithin 1month: -20~55°C,1-3months: 0~35°C, 3-12months: 20~25°C

General information
Manufacturer Pytes
Type E-BOX-48100R
Category Lithium
Kind New products
Condition New
Age New
Details
Nominal Capacity 5.12 kWh
Connection concept DC
Battery technology Lithium
Usable capacity 5 kWh
Max. load capacity 2.55 kW
Max. discharge rate 2.55 kW
Expendable capacity Yes
Connect Power 0 kW
Phases 0
Output power 0 kW
Discharge level 0 %
Efficiency 95 %
Sales options
Price WP 311.844
Seller Contact Information

Please login with your user name and your password.

GO TO LOGIN

Product Location

Please login with your user name and your password.

GO TO LOGIN

Downloadable documents
File name File type
