Unal Kablo

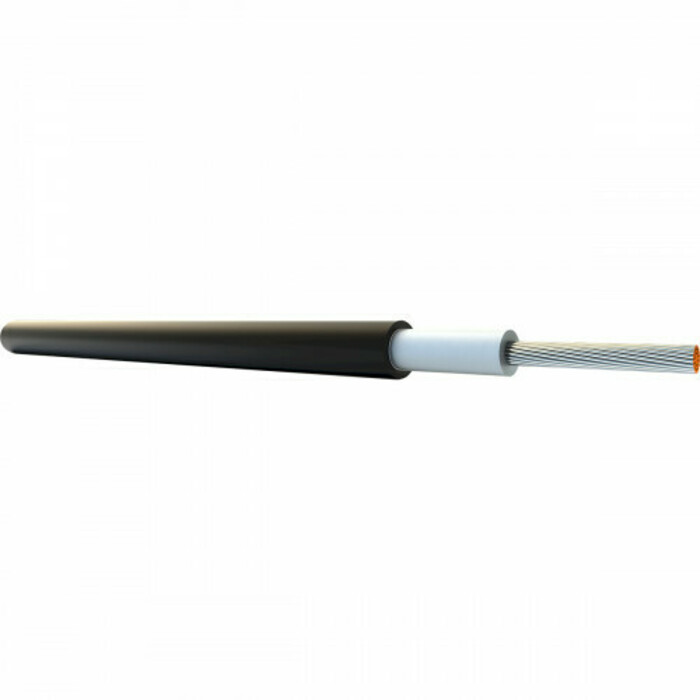

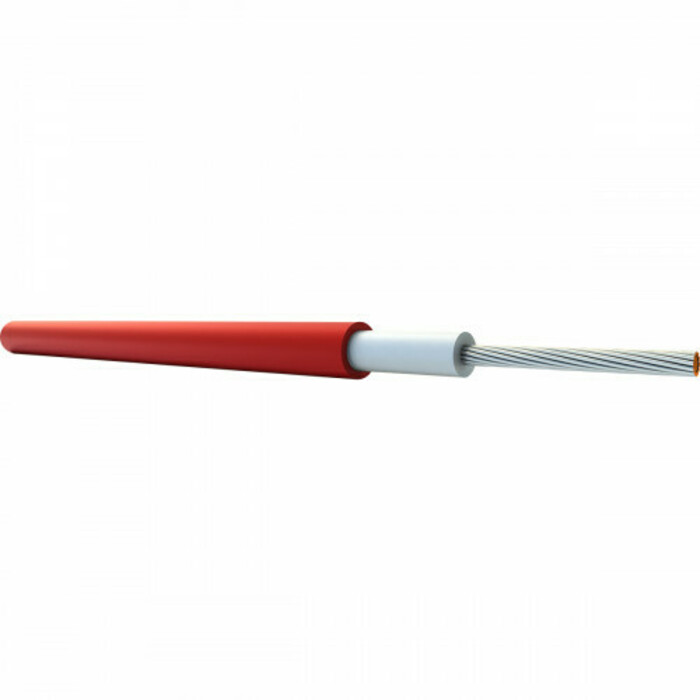

Solar Kabel - 4mm - H1Z2Z2-K - Rood/Zwart
Especially designed to connect solar panels for permanent junction boxes and inverters.
Good abrasion and ozone resistant flame-retardant properties.
Halogen-free, oil-resistant,
reduced diameter, and outstanding flexibili
Nominal cross section (mm²) 1x4
Rated voltage UO/U V 1,0/1,0 kV
Applicable Standard EN 50618
Applicable Standard for Conductor EN 60228
Material of conductor Class 5 fine stranded tinned copper
Material of insulation Halogen free cross-linked comound
Thickness of insulation (mm) 0,7 0
Identification of core White
Material of outer sheath Halogen free cross-linked comound
Average thickness of outer sheath (mm) 0,8
Overall cable diameter (mm) approx 5,5
Colour of outer sheath Red or Black
min. operating temperature }C - 40}C
max. operating temperature }C 120}C
Conductor DC resistance at 20}C ? / km 5,09
Please login with your user name and your password.
Please login with your user name and your password.
Per pcs | 325,00 EUR |
excl. VAT. (21 %) |
File name | File type |
---|---|
TDS H1Z2Z2-K 05'18 | |
H1Z2Z2-K - CPR Class ... |
