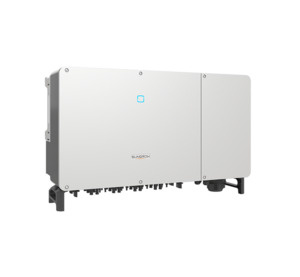

Inverter
Attention!
This offer is directed to tradepersons only.
Please log in as a trader, to display all productinformation.
This offer is directed to tradepersons only.
Please log in as a trader, to display all productinformation.
(14 customer ratings)
INPUT (DC)
Recomended max PV input power: 110 kWp
Max PV input voltage: 1100V
Min PV input voltage: 200 V / 250 V
Nominal input voltage: 585 V
MPP voltage range: 200 – 1000 V
No. of independent MPP inputs: 9
No. of PV strings per MPPT: 2
Max. PV input current: 26 A * 9
Max. DC short-circuit current: 26 A * 9
Max. Current for input connector: 158.8 A
OUTPUT (AC)
Nominal AC power (@230 V, 50 Hz): 110 kVA @ 45 ? / 100 kVA @ 50 ?
Max. AC output power: 158.8 A
Feed-in phases / AC connection: 3 / 3
EFFICIENCY
Max. efficiency: 98.7%
European efficiency: 98.5%
GENERAL DATA
Dimensions (WHD): 1051 * 660 * 362.5 mm
Weight: 89 kg
Topology: Transformerless
Degree of protection: IP66
Operating ambient temperature range: -30 to 60 ? (> 50 ? derating)
Allowable relative humidity range: 0% – 100%
Cooling method: Smart forced air cooling
DC connection type: MC4 (Max. 10 mm² )
AC connection type: OT / DT terminal (Max. 240 mm²)
