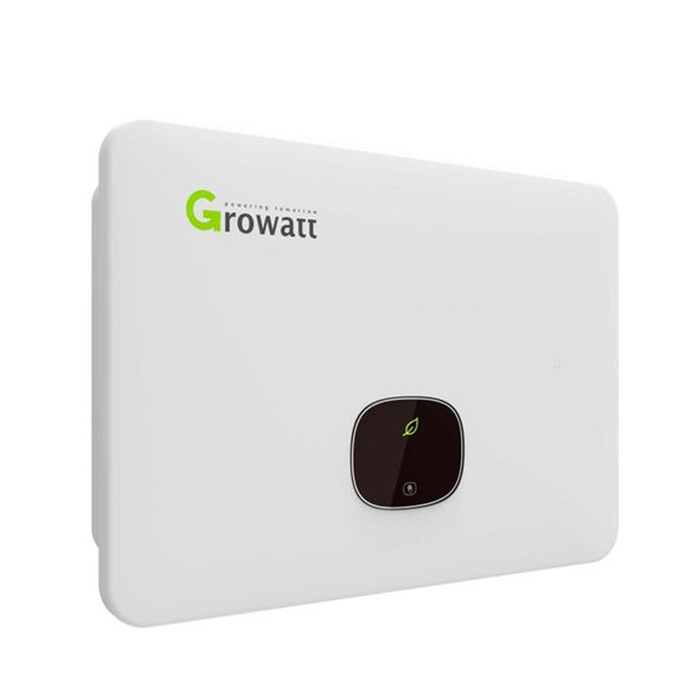

Growatt MIN 5000TL-X Single-Phase Grid-Tied Inverter (AFCI)

Description

The Growatt MIN 5000TL-X (AFCI) is a modern single-phase grid-tied inverter designed for small and medium-sized solar systems. Combining high efficiency with innovative features, it provides reliable and safe operation while helping maximise energy yield.

Specifications

• Power: 5 kW
• Maximum efficiency: 98.4%
• MPPT trackers: 2 independent trackers for optimised performance
• AFCI (Arc-Fault Circuit Interrupter): Integrated arc-fault protection for enhanced safety
• Connectivity: Wi-Fi, Ethernet and RF support for remote monitoring and control
• Interfaces: USB, RS485, Wi-Fi/GPRS (optional)
• Operating temperature: ?25}C to +60}C
• Display: OLED display with touch buttons for easy operation
• Protection: Built-in protection against overvoltage, overload, short circuit and overheating
• Dimensions: 375 × 350 × 160 mm
• Weight: 10.8 kg
• Protection rating: IP65, suitable for indoor and outdoor installation

Applications

The Growatt MIN 5000TL-X (AFCI) is ideal for residential solar systems and small commercial installations. Typical applications include:

• Residential solar systems: Reliably and efficiently converts solar energy into electricity for household use.
• Small businesses: Helps businesses reduce electricity costs and use renewable energy.
• Building-mounted solar installations: Suitable for various types of buildings as a sustainable energy solution.

The AFCI function adds an extra layer of safety by detecting electrical arcs and helping reduce the risk of fire. The integrated MPPT trackers help maximise solar energy generation, even when lighting conditions vary.

The Growatt MIN 5000TL-X (AFCI) is easy to install and operate. It supports remote monitoring and control through various connectivity options and a mobile app. Its compact design and IP65 protection rating make it suitable for a range of installation environments.
