Wechselrichter
Deye
SUN-12K-SG02LP1-EU

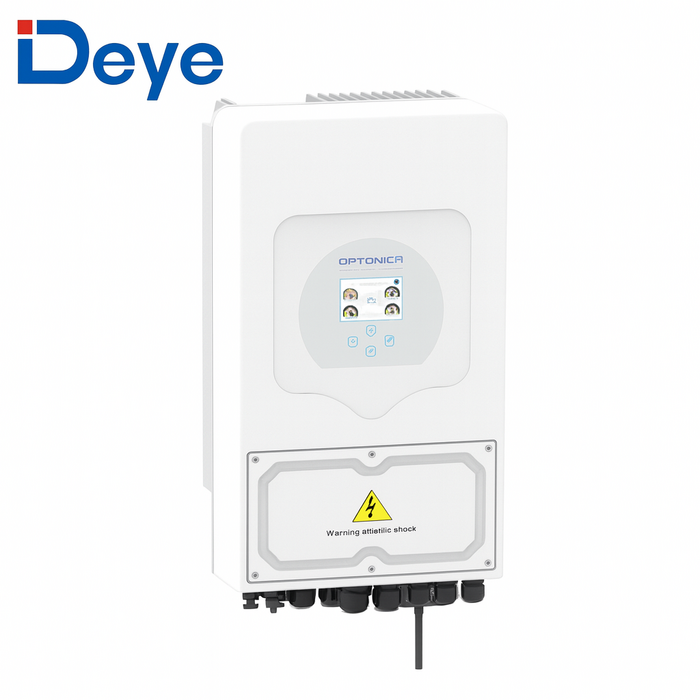

DEYE SUN-12K-SG01LP1-EU Single Phase Hybrid Inverter 12kW – IP65, WiFi, 2 MPPT
(0 Kundenrezensionen)
The DEYE SUN-12K-SG01LP1-EU is a single-phase hybrid inverter designed for both on-grid and off-grid applications. With a maximum PV input power of 24,000W and a battery voltage range of 40–60V, this inverter offers outstanding flexibility and performance for residential and commercial systems.
? Key Features:
Max. charging/discharging current: 290A
Compatible with lead-acid and lithium-ion batteries (auto BMS adaptation)
Supports up to 16 units in parallel for on-grid/off-grid operation
Allows AC coupling to retrofit existing PV systems
6 programmable charging/discharging time periods
IP65 protection, suitable for outdoor installation
Colorful touch LCD display
Intelligent air cooling for high reliability
Multiple communication options: RS485 / RS232 / CAN / WiFi / 4G / LAN (optional)
?? Technical Specifications:
Max. PV input: 24,000W
Max. PV voltage: 500V
MPPT voltage range: 150–425V
Rated AC power: 12,000W
Max. efficiency: 97.6% (European 96.5%)
Weight: 52 kg
Size: 464 × 763 × 282 mm
Cooling: Intelligent air cooling
Protection: Overvoltage, short circuit, thermal, reverse polarity, surge TYPE II (DC/AC)
Certifications: IEC/EN 62109-1/2, IEC 61727, AS 4777.2, NRS 097
Warranty: 5 or 10 years (depending on installation site)
