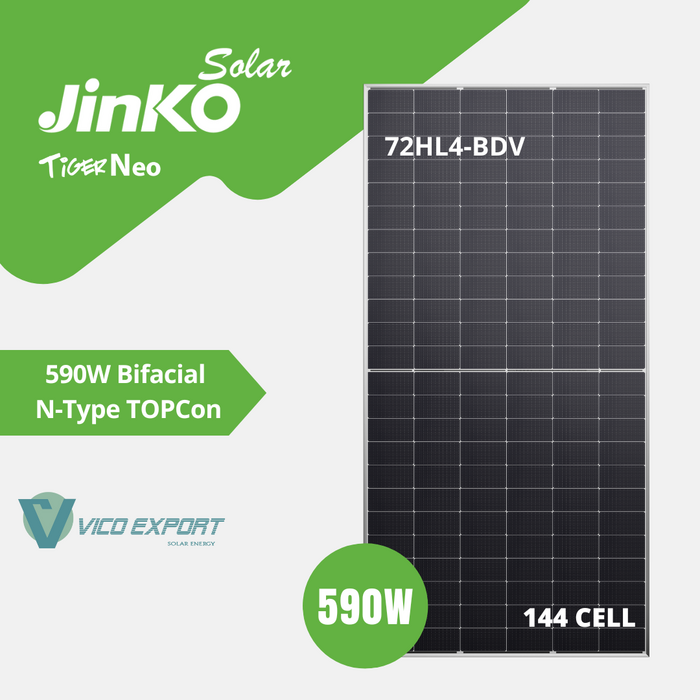

590W Jinko Solar N-type Bifacial | Tiger Neo Series 72HL4-BDV

MAIN FEATURES

N-Type Technology with TOPCon:
This panel incorporates N-Type cells with Tunnel Oxide Passivated Contact (TOPCon) technology, which reduces LID/LeTID degradation and improves performance under low irradiance conditions.

Bifacial Dual-Glass Design:
Thanks to its bifacial structure and dual-glass construction, this module can capture light from both sides, increasing energy generation and optimizing performance in installations with reflective surfaces.

High Power and Efficiency:
With a power output of 590W and an efficiency of 22.84%, this panel maximizes energy production, making it ideal for high-performance projects.

Resistance to Extreme Conditions:
Designed to withstand up to 5400 Pa of front snow load and 2400 Pa of rear wind load, ensuring durability in demanding environments.

Low Power Degradation:
It presents a degradation of 1% in the first year and 0.4% annually thereafter, ensuring stable performance and an extended service life of up to 30 years.

TECHNICAL SPECIFICATIONS

Electrical Data (STC):

Nominal Power (Pmax): 590W

Optimal Operating Voltage (Vmp): 44.17V

Optimal Operating Current (Imp): 13.36A

Open-Circuit Voltage (Voc): 52.90V

Short-Circuit Current (Isc): 14.07A

Module Efficiency: 22.84%

Power Tolerance: 0 ~ +3%

Mechanical Data:

Cell Type: Monocrystalline N-Type TOPCon

Cell Layout: 144 (72 x 2)

Dimensions: 2278 x 1134 x 30 mm

Weight: 31 kg

Front and Rear Glass: 2.0 mm tempered glass with anti-reflective coating

Frame: Anodized aluminum alloy

Junction Box: IP68, 3 bypass diodes

Connectors: MC4 or equivalents

Cables: 4.0 mm², lengths: (+) 400 mm, (-) 200 mm (customizable)

Operating Temperature Range: -40°C to +85°C

Temperature Coefficient (Pmax): -0.3%/°C

ADDITIONAL BENEFITS

International Certifications:
Complies with IEC 61215, IEC 61730, ISO 9001, ISO 14001, and ISO 45001, ensuring quality and safety.

Extended Warranty:
12-year product warranty and 30-year linear performance warranty.

Environmental Resistance:
High resistance to salt mist and ammonia, ideal for coastal or agricultural environments.

The Jinko Solar Tiger Neo JKM590N-72HL4-BDV solar panel is a high-efficiency, long-lasting solution, perfect for commercial and industrial installations seeking to maximize long-term energy production.
