ELECTRICAL PARAMETERS

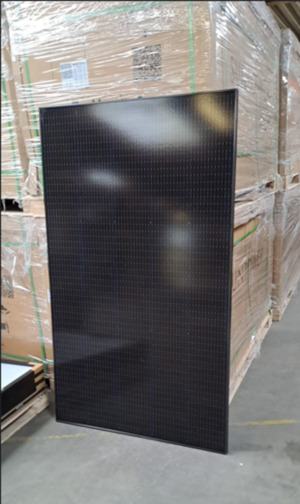

Model: LR5-54HPH-420M
Maximum Power (Pmax/W): 415W
Maximum Power Voltage (Vmpp/V): 31.73
Maximum Power Current (Impp/A): 13.18
Open-Circuit Voltage (Voc/V): 37.75
Short-Circuit Current (Isc/A): 14.01
Module Efficiency (%): 21.5
Power Tolerance: 0~+3 Wp
NOCT: 45ºC±2ºC
Values at Standard Test Conditions STC: (AM 1.5, Irradiance 1,000 W/m2, Cell Temperature 25ºC)

SPECIFICATIONS
Cell Type: Mono Crystalline
Number of cells: 108 (6x18)
Weight: 20.8 kg
Dimensions: 1,722 x 1,134 x 30 mm

Frame: Anodized aluminum alloy frame
Cable length: 1,200mm
Cable cross section size: 4 mm²
Junction Box: IP68, 3 diodes

Packaging: 36pcs/pallet

OPERATING CONDITIONS
Maximum System Voltage: 1500V DC (IEC)
Operating temperature: -40ºC / +85º C
Maximum Series Fuse Rating: 25A
Protection Class: Class II
