Zonnepanelen

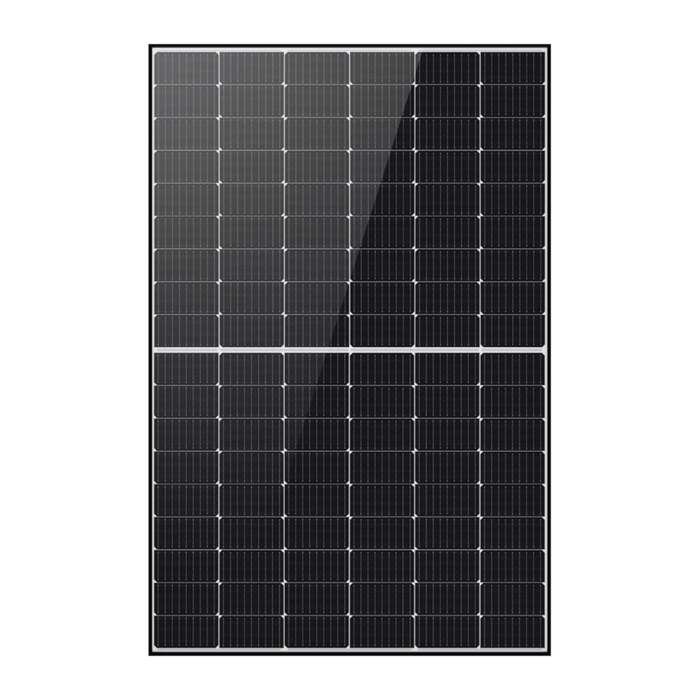

LONGI Solar
LR5-54 HIH 405 M
Suitable for distributed products. Based on M10-182mm wafer, best choice for ultra-large power plants. Advanced module technology delivers superior module eficiency. M10 Gallium-doped Wafer. Integrated Segmented Ribbons. 9-busbar Half-cut Cell. Excelle
(0 klantenbeoordelingen)
| Series Name | Hi-MO 5m LR5-54HIH 400-420M |
| Series Power Range (Wp) | 400-420 |
| Model Name | LR5-54HIH-405M |
| Warranty Years | 12 |
| Primary (Years, % Output Power) | 25, 84.8 |
| Voltage at Maximum Power, Vmpp (V) At STC | 31 |
| Current at Maximum Power, Impp (A) At STC | 13.07 |
| Open Circuit Voltage, Voc (V) At STC | 37 |
| Short Circuit Current, Isc (A) At STC | 13.83 |
| Panel Efficiency (%) At STC | 20.7 |
| Power Tolerance, - (%) At STC | 3 |
| Temperature coefficient of Pmax (%/}C) | -0.34 |
| Temperature coefficient of Voc (%/}C) | -0.265 |
| Temperature coefficient of Isc (%/}C) | 0.05 |
| Maximum System Voltage (V) | 1500 |
| Cell Number | 108 |
| Glass Type | Single, coated tempered glass |
| Glass Thickness (mm) | 3.2 |
| Frame Type | Anodized Aluminum Alloy |
| Connector Type | MC4 EVO2 |
| Cable Crosssection (mm²) | 4 |
| Cable Length (mm) | 1200 |
