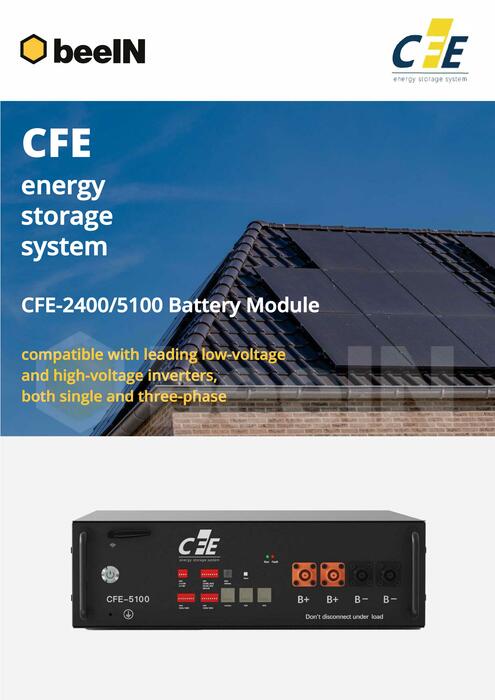

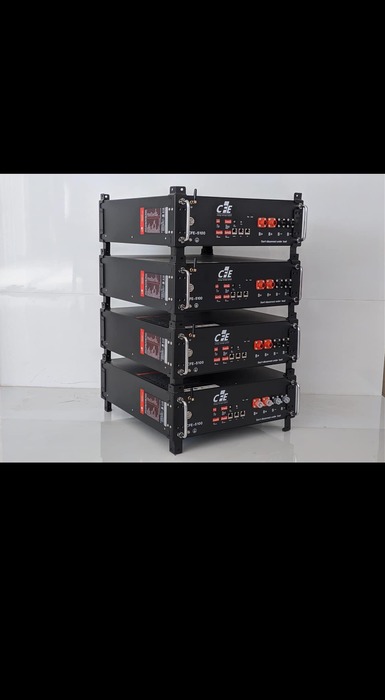

CFE 5100
1.Signal module could be installed in parallel or serial connection.
2.Integrated WIFI Modem in each unit, helps to solve problem quickly for after service.
3.Direct connect with smart phone and battery BMS, solve after service for those site without internet.
4.Remote upgrade firmware decrease after service.
5.Relay included in each module, which is more stable and reliable than MOSfet.
6.Radom connect battery ignore the voltage different.
7.Provide wall mountain and ground install methods.
8.Voltage, current sampling precision, benefits SOC mathematic more accuracy.
9.SOC mathematic more correctly and never jump.
Product Description

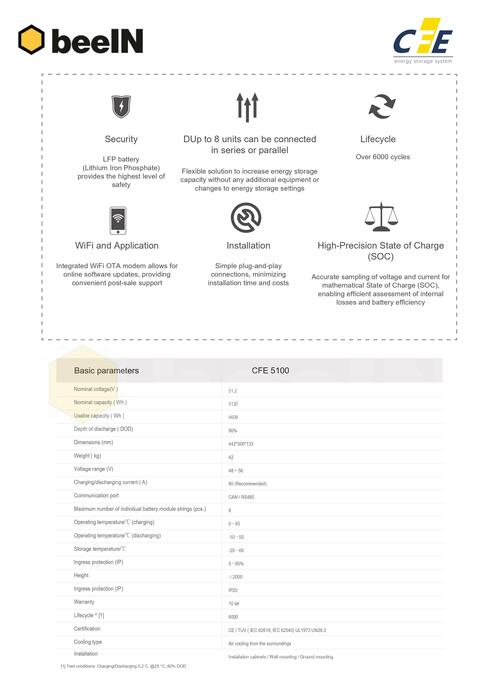

| Product Parameters | |
| Basic Parameters | CFE 5100 |
| Nominal Voltage(V) | 51.2 |
| Nominal Capacity(Wh) | 5120 |
| Usable Capacity(Wh) | 4608 |
| Dimension(mm) | 442*500*133 |
| Weight(Kgs) | 42±0.5 |
Charge/Discharge Current(A) | 60(Recommend) |
| 60(Max) | |
| 100(Peak@15s) | |
| Communication Port | CAN / RS485 |
| Single string quantity(pcs) | 8 |
| Charge Working Temperature /}C | 0~45 |
| DisCharge Working Temperature /}C | -10~55 |
| Storage Temperature /}C | -20~60 |
| Humidity | 95% (No Condensed Water) |
| Altitude(m) | 2000 |
| IP Rating | IP20 |
| Warranty | 10 years |
| Cycle life | 6000 |
| Authentication Level | CE & TUV(IEC 62619, IEC 62040) UN3480 |
| Cooling Type | Ambient Cooling |
| Installation | Cabinet or Wall Mounting |
Log a.u.b. in met uw gebruikersnaam en wachtwoord.
Log a.u.b. in met uw gebruikersnaam en wachtwoord.
| Per stuk | 840,00 EUR |
| Per kWp |
164,706 EUR
|
| excl. BTW. (23 %) |
