Zonne Batterijen
BYD
HVM 11.0 Premium Battery-Box
BYD HVM 11.0 Premium Battery-Box For Sale, Available Stock 35

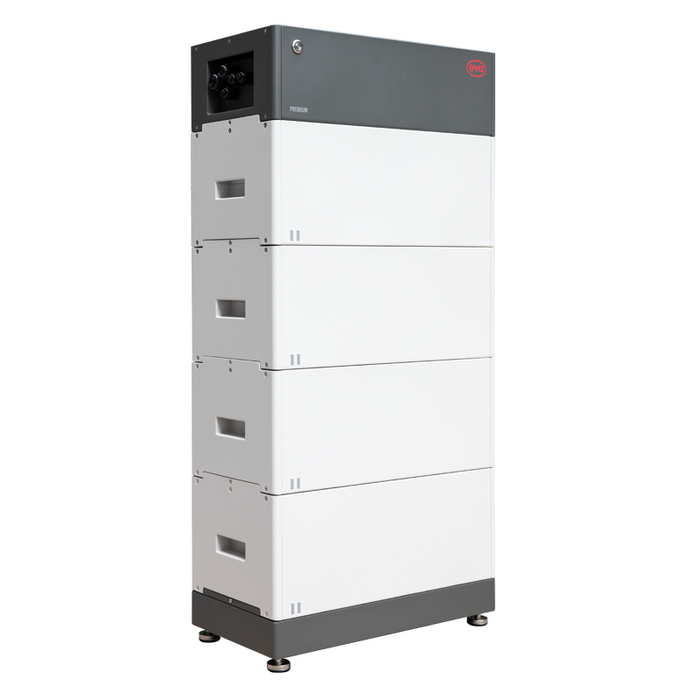

BYD HVM 11.0 Premium Battery-Box has developed a battery storage line, which is suitable for any application. While the modular LV and HV solutions fit any residential application.
The new BYD Battery-Box Premium HVM 11.0 battery storage system generation builds on the well-known memories and has all previous functions. The Battery-Box Premium HVM is a battery module that has higher storage capacities than its predecessor. The further development of cell technology has reduced the system weight by almost 30%. The construction depth was also reduced by 8 cm. This means that less floor space is required. At the same time, the new devices have a leaner look. One of the highlights: The new storage systems have “protection class IP55”. This enables use outside as well.
BYD HVM 11.0 Premium Battery-Box storage batteries are more flexible and scalable. With the new generation, up to three battery towers can now be connected to one system. BYD remains true to itself when it comes to loading and unloading. Each battery can also supply the nominal capacity as power – i.e. 1C. This makes the new series ideal for on-grid, on-grid plus backup and off-grid systems.
BYD Premium HVM are compatible with Kostal Plenticore Plus, Sungrow Hybrid, GoodWe ET-BT-EH series as well as SMA Sunny Boy Storage, Fronius and Kaco Hybrid Inverters.
Technical Parameters | |
Model: | Battery-Box Premium HVM 11.0 |

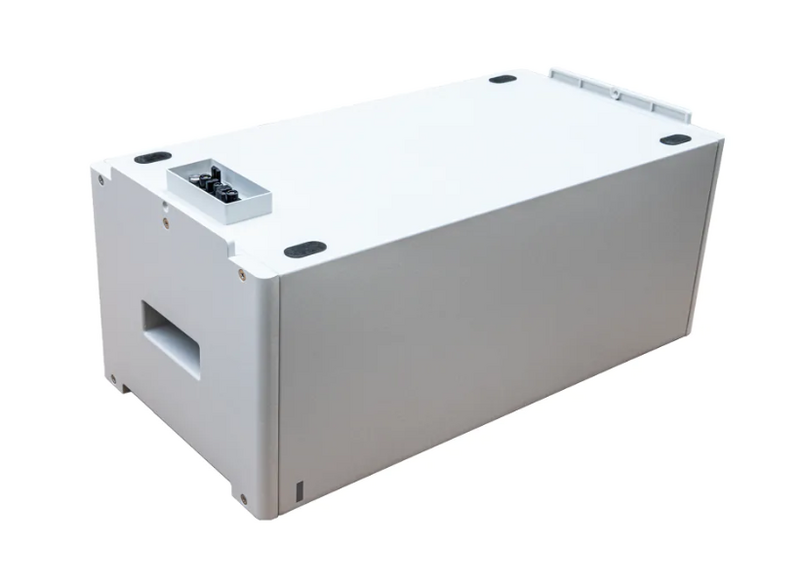

Battery Module: | HVM (2.76 kWh / 51.2 V / 38 kg) |
Number of Modules: | 4 |
Usable Energy [1]: | 11.04 kWh |
Max Output Current [2]: | 40 A |
Peak Output Current [2]: | 75 A, 3 s |
Nominal Voltage: | 204 V |
Operating Voltage: | 160~230 V |
Dimensions (H/W/D): | 1228 x 585 x 298 mm |
Weight: | 167 kg |
Operating Temperature: | -10 }C bis +50}C |
Battery Cell Technology: | Lithium Iron Phosphate (cobalt-free) |
Communication: | CAN/RS485 |
Enclosure Protection Rating: | IP55 |
Round-trip Efficiency: | ?96% |
Certification: | VDE2510-50 / IEC62619 / CEC / CE / UN38.3 |
Applications: | ON Grid / ON Grid + Backup / OFF Grid |
Warranty [3]: | 10 Years |
BYD HVM 11.0 Premium Battery-Box datasheet PDF Instalations guide user manual,
https://www.jpnpartsale.com/byd-battery-box/
