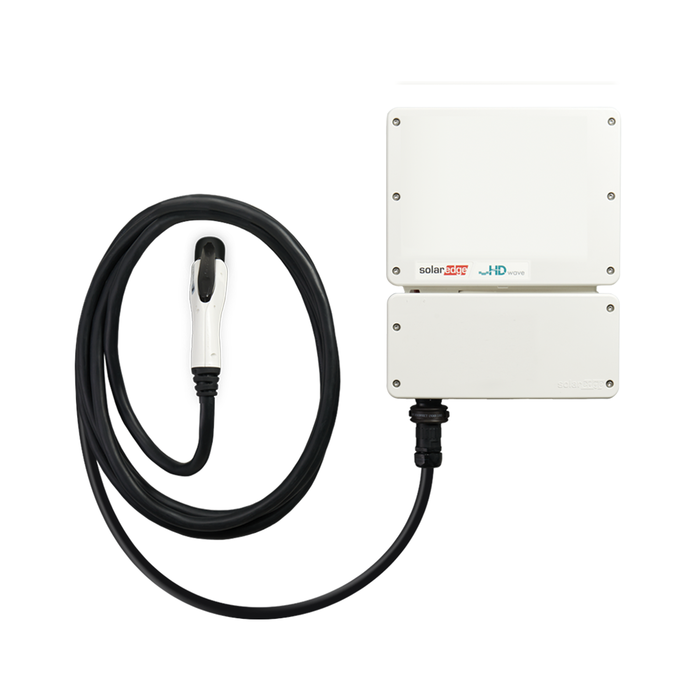

SOLAR EDGE SE4000H EV Charger

SolarEdge combines a solar inverter and an electric car charging station in one unit! By combining a wallbox charger with a 1-phase inverter, cars can be charged with a maximum output of 7.4 kW.

SolarEdge inverters do not have an MPP tracker and have only one input for SolarEdge modular optimizers. Thanks to the use of invariant voltage technology, the SolarEdge inverter always operates in the optimal input voltage range regardless of the module and the number of strings. Performance data is transmitted via a photovoltaic cable from each photovoltaic module optimizer to the SolarEdge inverter and can be visualized online in the SolarEdge monitoring portal. SolarEdge inverters come with a 12-year standard warranty, confirming the quality of the products offered.

The latest SolarEdge N4 series inverters do not have a display. Quick and easy startup of the inverter using the SolarEdge app installed on a smartphone.

Advantages of SolarEdge SE4000H EV Charger

• Inverter designed exclusively for SolarEdge optimizers

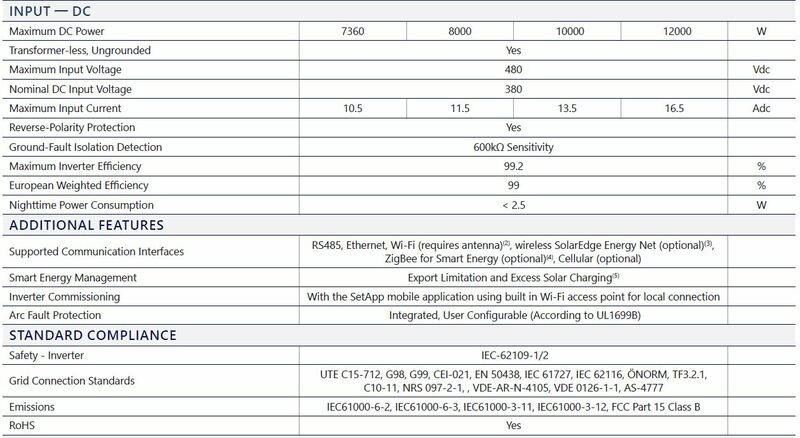

• Rated voltage of 380 V DC
• Very high efficiency of up to 99.2%
• Internet connection via RJ45 network connector
• Connectors for circular signal receiver
• Optional WiFi, ZigBee or GSM gateway

Product features

• 6.0 kVA 1 phase power (note that the maximum phase shift load is throttled to 4.6 kVA according to the German national standard)

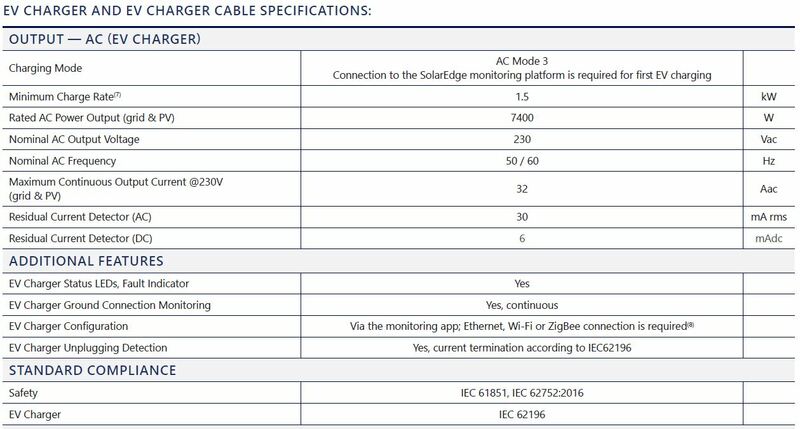

• Wallbox 1-phase wall charger with a maximum output of 7.4 kW at 32 A
• Integrated FI TYPE A ground fault circuit breaker and 6 mA DC recognition function
• 2 pairs of MC4 inputs
• RJ45 Ethernet and Wireless
• IP65
• Standard 12-year warranty

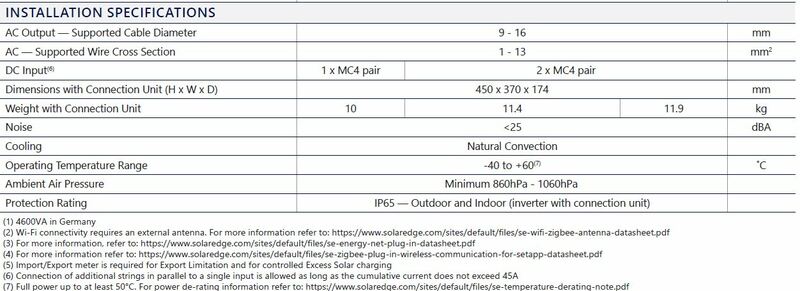

• Dimensions 450 x 370 x 174 mm
• Weight 11.9 kg
