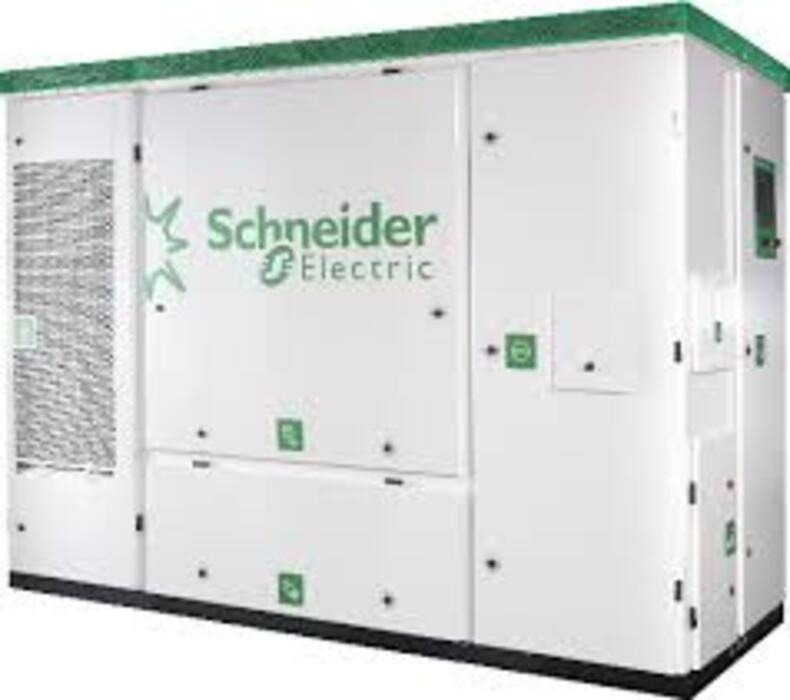

- 1 x Conext SmartGen
CS2000 – 2000KVA

1800 kW / 2000 kVA 2000 kW / 2000 kVA 2200 kW / 2200 kVA 2200 kW / 2400 kVA Nominal output power at 50}C 1800 kW / 2000 kVA 2000 kW / 2000 kVA 2060 kW / 2060 kVA 2060 kW Nominal output voltage 575 V 575 V 600 V 600 V Nominal frequency 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz Max. output current 2008 A 2008 A 2117 A 2310 A Continuous operation output voltage range +/- 20% (460 - 690 V) +/- 20% (460 - 690 V) +15% / -20% (480 - 690 V) +15% / -20% (480 - 690 V) Continuous operation frequency range 50 / 60 Hz +/- 10% 50 / 60 Hz +/- 10% 50 / 60 Hz +/- 10% 50 / 60 Hz +/- 10% Power factor1 0 to 1 lead / lag 0 to 1 lead / lag 0 to 1 lead / lag 0 to 1 lead / lag Harmonic distortion (THDI) < 3% at rated power < 3% at rated power < 3% at rated power < 3% at rated power Peak efficiency 98.8% 98.8% 98.8% 98.4% Weighted efficiency (EU weightings)2 98.5% 98.5% 98.5% 98.5% Weighted efficiency (CEC)3 98.5% 98.5%2000 98.5% 98.5% 98.5% DC Max. input voltage range, MPPT4 865 - 1500 V 865 - 1500 V 905 - 1500 V 900 - 1500 V Max. input voltage, open circuit 1500 V 1500 V 1500 V 1500 V Max. input operating current 2123 A 2359 A 2481 A 2481 A DC breaker short-circuit current rating 6000 A 6000 A 6000 A 6000 A Max. rated short circuit current With max. 14 DC inputs x 400 A fuse rating: 3584 A STC, 4480 A absolute max. DC combiner Integrated Integrated Integrated Integrated Number of DC inputs 10 to 14 10 to 14 10 to 14 10 to 14 DC fuse rating 160 A - 400 A 160 A - 400 A 160 A - 400 A 160 A - 400 A General specifications Service life5 30 years Power consumption, night time6 < 295 W Degree of protection 7 Outdoor (Type 4X / IP65) Enclosure Aluminium Seismic rating IEEE 693-2005 qualification to high seismic performance levels (ZPA = 1.0g 2% damping) IBC ICC-ES AC156-2012 certification to a SDS equal to 1.78g and with a z/h equal to 0 and IP=1.5 UBC Zone 4 Product weight (approx.) 2800 kg (6160 lb) Product dimensions (H x W x D) 220 x 300 x 130 cm (86.6 x 118.1 x 51.2 in) Ambient air temperature for operation -25}C to 60}C (-13}F to 140}F). Optional -30}C rating (-22}F) Operating altitude 2,000 m without derating, up to 4,000 m with derating Relative humidity 5% to 100% condensing Features Type of cooling Temperature-dependent low pressure closed-loop liquid cooling Graphic user interface ConextTM Viewer application for tablet and PC External communication interface Modbus/RS485 standard, Modbus/TCP AC/DC disconnect Load-break-rated DC and AC circuit breaker standard Ground fault detection/interruption PV insulation monitoring and RCD (on grounded PV configurations) Options Grounding (negative / floating), string current monitoring, class I surge arresters Standards Safety standards IEC version: IEC62109-1, and -2 / NA version: UL 1741, CSA 107.1 EMC standards IEC/EN 61000-6-2 and -6-4, EN 55011:2016, CISPR 11 Ed. 6, FCC Class A Grid interconnection BDEW, CEI 0-16, French Decree 23-Apr-2008, IEC61727, PEA and more
