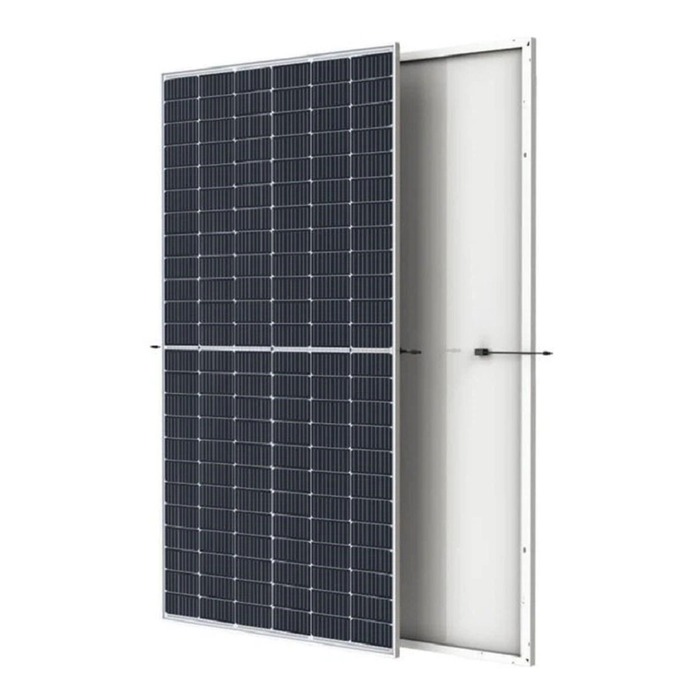

SHINEFAR Solar SF-M18/144 595W is a high-efficiency monocrystalline photovoltaic module featuring N-type TOPCon half-cell technology, designed for high performance and long-term reliability. Thanks to SMBB (Super Multi Busbar) technology and its optimised design, the panel offers lower electrical losses, higher efficiency and excellent performance in low-light conditions and at high temperatures.

The module offers strong resistance to PID, salt mist, ammonia and harsh weather conditions, making it suitable for residential, commercial and industrial solar systems. With an efficiency of 23.03%, a 15-year product warranty and a 30-year linear power warranty, the SF-M18/144 595W is a reliable solution for projects seeking high energy yields and a low cost of electricity generation.

Temperature Characteristics

• Nominal operating cell temperature (NOCT): 45 ± 2}C
• Temperature coefficient (Pmax): ?0.30%/}C
• Temperature coefficient (Voc): ?0.23%/}C
• Temperature coefficient (Isc): +0.05%/}C

Construction and Mechanical Parameters

• Technology: N-type TOPCon half-cell
• Number of cells: 144 half-cells (182 × 91 mm)
• Module type: Monofacial
• Dimensions: 2278 × 1134 × 30 mm
• Weight: 26.5 kg
• Front glass: 3.2 mm high-transparency tempered solar glass
• Backsheet: White
• Frame: Silver anodised aluminium
• Junction box: IP68
• Cables: 4.0 mm², 300 mm long
• Bypass diodes: 3
• Connectors: MC4-compatible

Reliability and Durability

Maximum system voltage: 1500 V DC

Maximum fuse rating: 25 A

Operating temperature: ?40}C to +85}C

Maximum mechanical load:

• Snow: 5400 Pa
• Wind: 2400 Pa

Excellent resistance to PID

High resistance to salt mist and ammonia

Reduced losses caused by the hot-spot effect

Optimised for a lower LCOE and higher energy yield

Warranty and Guaranteed Performance

• Product warranty: 15 years
• Linear power warranty: 30 years
• Guaranteed performance:
  • 98.5% after the first year
  • Maximum annual degradation of 0.4%
  • 84.0% guaranteed power output after 30 years

Certifications

• IEC/EN 61215
• IEC/EN 61730
• UL 61730
• IEC 61701 (Salt Mist)
• IEC 62716 (Ammonia)
• IEC 62804 (PID)
• ISO 9001
• ISO 14001
• ISO 45001
• CE
• UKCA
