As an official partner of renowned manufacturers, we offer photovoltaic modules, inverters, and energy storage systems from a single source.
Fully Integrated System Design
Efficient Liquid Cooling: Uniform temperature distribution (?T ? 2.5 }C) protects the battery cells and increases their lifespan.
Maximum Safety: AI-supported cell monitoring, multi-stage overcurrent protection, and an integrated fire protection concept (including gas detector, smoke detector, and aerosol system).
Powerful and Robust: 110 kW nominal power output with a system efficiency of up to 98.5%.
Parallel Operation: Supports up to 25 units in parallel operation (grid-connected) for the 2-hour system, providing a capacity of up to 5.7 MWh.
Smart Monitoring: Via the iSolarCloud app with remote maintenance, firmware updates, and real-time fault analysis.

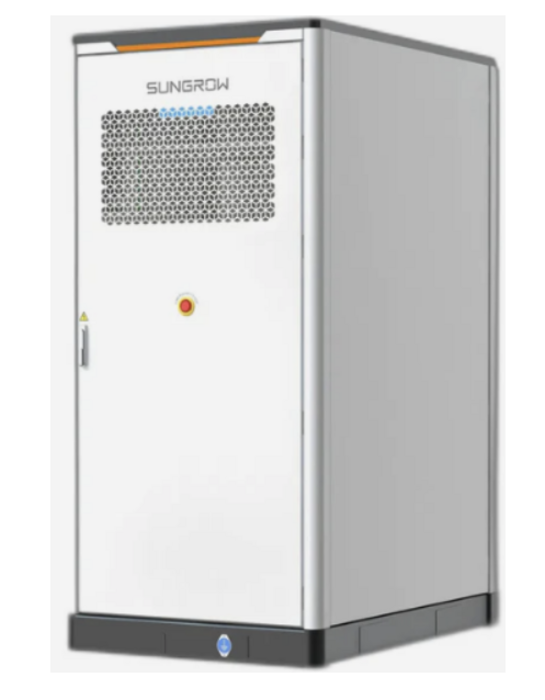

The Sungrow PowerStack ST225kWh-110kW-2h is a powerful, fully integrated energy storage system for commercial and industrial applications. With a usable capacity of 225 kWh and a power output of 110 kW (discharge time: 2 hours), the storage system offers an ideal balance of efficiency, safety, and flexibility.
Technical Specifications
Usable Capacity: 225 kWh
Power Output (AC): 110 kW
Voltage (DC): 691.2 V – 934.4 V
Protection Class: IP55
Operating Temperature: -30 }C to 50 }C
Communication: Ethernet / Modbus TCP
Dimensions (W x H x D): 1150 x 2450 x 1610 mm
Weight: 3,100 kg
Dit aanbod is alleen voor handelaren
| Bestandsnaam | Bestandstype |
|---|---|
| Datenblatt-ST225kWh- ... |
Klantbeoordeling
Sungrow PowerStack ST225 225kW
0.0
Bekijken
As an official partner of renowned manufacturers, we offer photovoltaic modules, inverters, and energy storage systems from a single source.
Fully Integrated System Design
Efficient Liquid Cooling: Uniform temperature distribution (?T ? 2.5 }C) protects the battery cells and increases their lifespan.
Maximum Safety: AI-supported cell monitoring, multi-stage overcurrent protection, and an integrated fire protection concept (including gas detector, smoke detector, and aerosol system).
Powerful and Robust: 110 kW nominal power output with a system efficiency of up to 98.5%.
Parallel Operation: Supports up to 25 units in parallel operation (grid-connected) for the 2-hour system, providing a capacity of up to 5.7 MWh.
Smart Monitoring: Via the iSolarCloud app with remote maintenance, firmware updates, and real-time fault analysis.
The Sungrow PowerStack ST225kWh-110kW-2h is a powerful, fully integrated energy storage system for commercial and industrial applications. With a usable capacity of 225 kWh and a power output of 110 kW (discharge time: 2 hours), the storage system offers an ideal balance of efficiency, safety, and flexibility.
Technical Specifications
Usable Capacity: 225 kWh
Power Output (AC): 110 kW
Voltage (DC): 691.2 V – 934.4 V
Protection Class: IP55
Operating Temperature: -30 }C to 50 }C
Communication: Ethernet / Modbus TCP
Dimensions (W x H x D): 1150 x 2450 x 1610 mm
Weight: 3,100 kg
