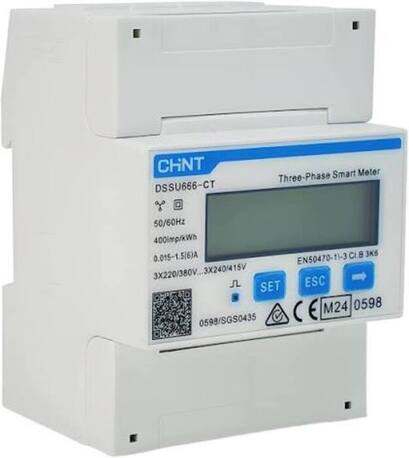

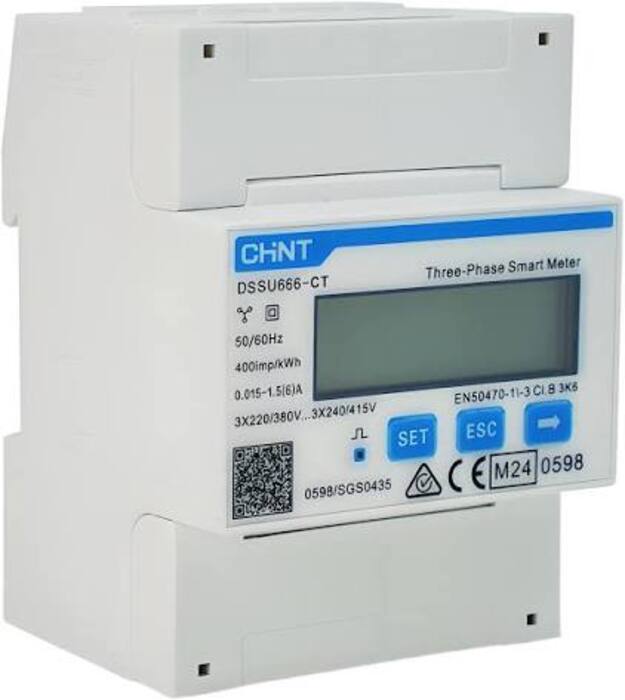

The CHINT DSSU666 is a Din Rail Mounted three-phase smart meter designed for accurate sub-metering. It supports Modbus-RTU communication via RS485 (default 9600bps), allowing easy integration into existing energy management systems.
Key Specifications:
System: 3P3W (Three Phase, Three Wire) connection type.
Voltage: 3×220/380V to 3×240/415V.
Current: Direct measurement 0.25-5(80)A.
Frequency: 50Hz or 60Hz.
Accuracy: Direct: Class B/1.0.
Constant: Direct: 800imp/kWh.
Power Consumption: ?2W, 10VA.
Measurement Capabilities: Import/Export kWh, kvarh, Instantaneous kW, kvar, kVA, Irms, Vrms, Frequency, and Power factor.
Environmental: Operating temperature from -25}C to +55}C, IP20 ingress protection, and non-condensing relative humidity ?95%.
Dimensions: 72mm × 100mm × 65mm.
The unit features a backlit LCD for large readings, LED indicators, and a pulse output. It complies with EN 50470-1/-3 standards and holds CE certification.
Please refer to the DSSU666_4.pdf for detailed wiring diagrams and complete specifications. Contact Vetrocare AB for current stock and pricing.
