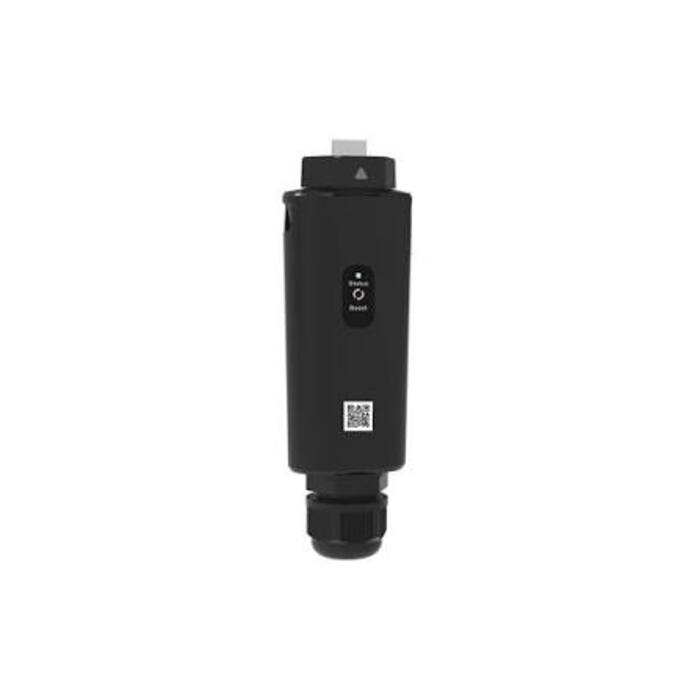

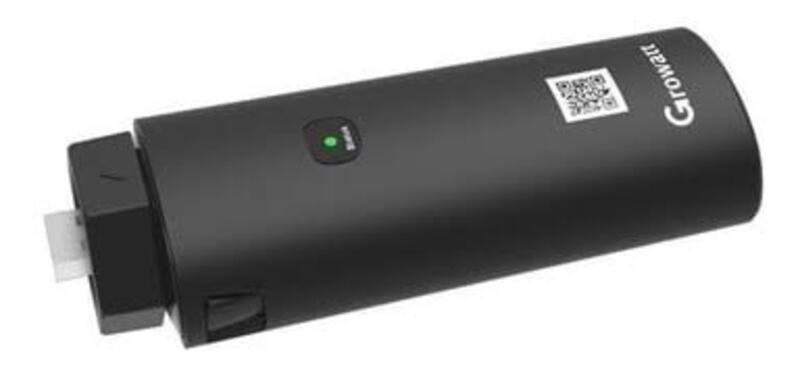

We offer the Growatt ShineLan-X Ethernet Data Logger, a reliable communication module designed for the monitoring and management of compatible Growatt solar PV inverters.

Ideal for installations where Wi-Fi coverage is unstable or unavailable, the ShineLan-X provides a direct and stable Ethernet connection to a local router's LAN port via an RJ45 network cable. It features a simple plug-and-play installation, connecting directly to the inverter's USB port. Once connected, users and installers can remotely monitor PV system performance and configure network settings via the ShinePhone app or a built-in web interface.

Key Features

Direct Ethernet connectivity: Connects to a router via RJ45 for a highly stable network connection.

Plug-and-play installation: Secures directly to the inverter's USB port with a rotary locking mechanism.

Built-in local storage: Retains up to one month of data internally to prevent data loss during internet outages.

Network flexibility: Supports automatic IP allocation via DHCP by default, with manual static IP configuration available for complex enterprise networks.

Remote monitoring: Fully integrates with the Growatt ShinePhone app and ShineServer (server.growatt.com) for real-time system management.

On-site diagnostics: Features three integrated LED indicators for immediate troubleshooting of inverter, router, and server communication status.

Robust design: IP65 environmental protection rating allows for safe installation in demanding conditions.

Technical Specifications

Specification

Value

Manufacturer

Growatt

Model

ShineLan-X

Product type

Ethernet Data Logger / Communication Module

Inverter interface

USB

Network interface

RJ45 (Ethernet)

Communication protocol

Modbus RTU / TCP

Nominal voltage

5 V (±5%)

Power consumption

2 W (Max: 3 W)

Display

3 × LED indicators

Configuration method

ShinePhone App / Built-in Web Page / DHCP

Data storage capacity

1 month (local memory)

Dimensions (W × D × H)

152 × 47 × 28 mm

Weight

84 g

Operating temperature

?30}C to +60}C

Protection rating

IP65 (dust tight, water jet protected)

Package Contents

1 × Growatt ShineLan-X Data Logger

1 × Quick Installation Guideline

Condition and Availability

Condition: New

Available from stock in Sweden. Bulk quantities may be available for installers, solar distributors, and other B2B customers.

Please contact us for current stock availability, bulk pricing, and shipping options.

Important: Please verify compatibility with your specific Growatt inverter model (e.g., -X series inverters) before ordering.
