Sungrow SG8.0RT – 8 kW 3-Phase Grid-Connected PV Inverter

SUNGROW SG8.0RT – 8 kW 3-Phase String Inverter

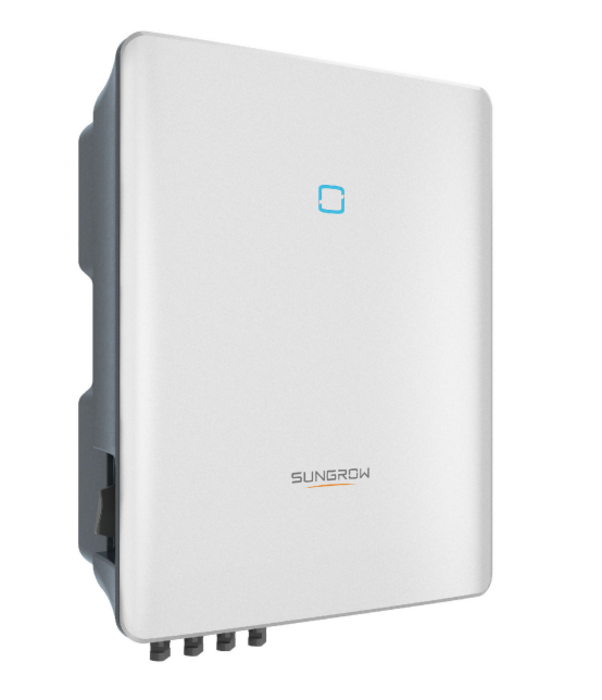

Original Sungrow SG8.0RT three-phase grid-connected photovoltaic inverter.

The inverter itself is new and unused and has never been installed, connected or operated.

Condition & Packaging

Condition: NEW / UNUSED

Inverter has never been installed or operated.

Original retail box is not included.

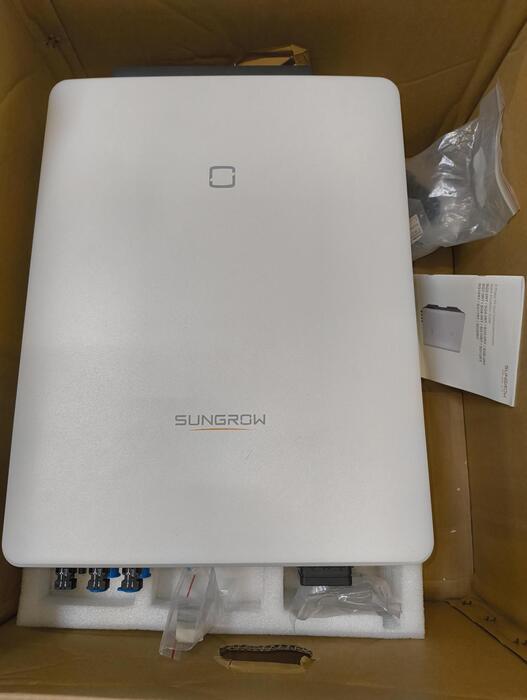

The inverter is supplied securely packaged with protective foam.

Only the accessories shown in the photos are included.

Quick Installation Guide is included if shown in the photos.

The unit has been stored and handled outside its original retail packaging.

Please note: This is a new/unused inverter without the original box, not a previously installed or operated inverter.

Technical Specifications

Manufacturer: Sungrow Power Supply Co., Ltd.
Model: SG8.0RT
Product type: 3-phase grid-connected PV inverter / string inverter
Rated output power: 8 kW
Maximum apparent power: 8.0 kVA / 8.8 kVA*
Maximum DC input voltage: 1,100 V
Minimum MPP voltage: 160 V
Maximum MPP voltage: 1,000 V
Maximum input current: 25 A / 12.5 A
Maximum PV short-circuit current: 32 A / 16 A
MPPT trackers: 2
Rated AC voltage: 3/N/PE, 230/400 V
Rated AC frequency: 50/60 Hz
Maximum AC output current: 12.1 A / 13.3 A*
Power factor range: 0.8 leading to 0.8 lagging
Safety class: I
Overvoltage category: III (AC), II (DC)
Protection rating: IP65
Operating temperature: -25}C to +60}C
Topology: Transformerless

* According to the manufacturer nameplate: 12.1 A AC / 8.0 kVA for Australia, Belgium and Germany; 13.3 A AC / 8.8 kVA for other countries.

Included

1 × Sungrow SG8.0RT inverter

Only the accessories shown in the photos

Protective packaging / foam

No additional accessories are included unless they are clearly visible in the listing photos.

Product Features

8 kW rated AC output

Three-phase grid connection

2 independent MPPT trackers

Up to 1,100 V DC input voltage

160–1,000 V MPP voltage range

IP65 protection

-25}C to +60}C operating temperature range

Transformerless design

Suitable for residential and commercial PV installations

The inverter's electrical specifications are based on the original Sungrow manufacturer nameplate.
