SOFAR 20KTLX-G3 – 20 kW 3-Phase String Inverter

4 PCS AVAILABLE – ALL INVERTERS NEW / UNUSED

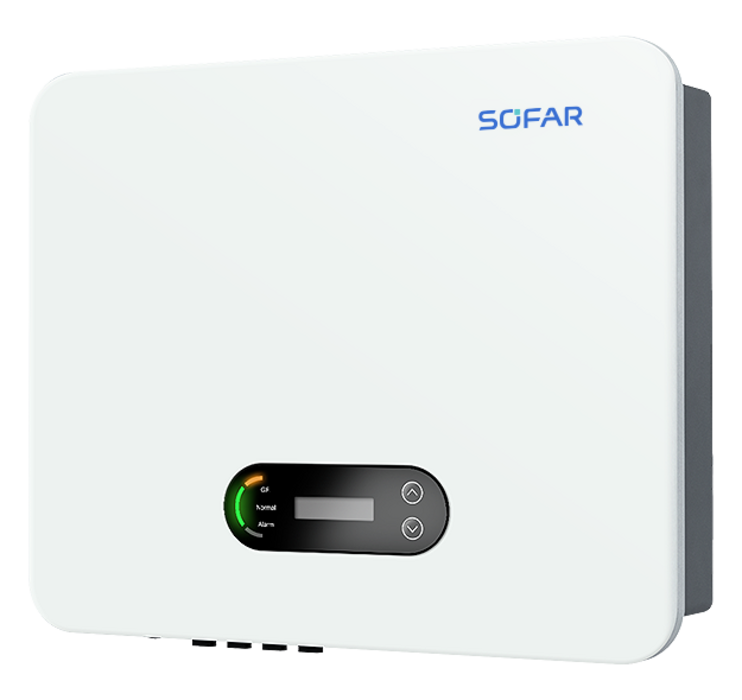

SOFAR 20KTLX-G3 three-phase grid-tied string inverters.

All 4 inverters are completely new and have never been installed, connected or operated.

Packaging & Accessory Condition

1 pc – €999: Original box is factory sealed and has never been opened. All original accessories are presumed to be inside the sealed packaging.

3 pcs: Original boxes have been opened, but the inverters themselves are completely new and unused.

For the 3 opened units, the condition of the COM Terminal Block Connector / COM Port Signal Connector is as follows:

1 pc: COM Terminal Block Connector / COM Port Signal Connector is included and has been used previously. The inverter itself remains completely new and unused.

2 pcs: COM Terminal Block Connector / COM Port Signal Connector is not included.

The inverters in all 3 opened boxes are new and unused and have never been installed or operated.

Please note: The condition of the COM connector applies only to the accessory, not to the inverter itself.

Technical Specifications

Manufacturer: SOFAR
Model: 20KTLX-G3
Type: 3-phase grid-tied / string inverter
Rated AC power: 20 kW
Maximum PV input power: 30 kWp
Maximum DC input voltage: 1,100 V
MPPT operating range: 140–1,000 V
Start-up voltage: 160 V
MPPT trackers: 2
DC inputs: 2 per MPPT / 4 total
Maximum input current: 26 A per MPPT
Maximum short-circuit current: 36 A per MPPT
Maximum AC apparent power: 22 kVA
Maximum AC output current: 31.9 A
Maximum efficiency: 98.6%
European efficiency: 98.2%
Topology: Transformerless
DC switch: Yes
DC & AC SPD: Type II
Protection rating: IP65
Cooling: Smart air cooling
Communication: RS485 / WiFi
Weight: approx. 22 kg

Product Description

The SOFAR 20KTLX-G3 is a high-voltage, dual-MPPT, three-phase string inverter designed for commercial and larger photovoltaic installations.

The inverter offers high efficiency, two independent MPPT trackers, high DC input capacity and integrated protection features, making it suitable for a wide range of commercial PV applications.

Condition

All 4 inverters are NEW and UNUSED.

1 × factory sealed – €999

3 × opened box / unused inverter

1 × with previously used COM Terminal Block Connector / COM Port Signal Connector

2 × without COM Terminal Block Connector / COM Port Signal Connector

The inverters themselves have never been installed, connected or operated.

Please review the packaging and accessory condition carefully before purchase. If required, photos of the individual box and included accessories can be provided for each unit.

Official SOFAR manufacturer documentation is available.
