JC250M-24/Bb (Virtus II 2012 new)
Used ReneSola Virtus II 250W polycrystalline modules from a decommissioned UK rooftop system.
ReneSola Virtus II JC250M-24/Bb – 250 Wp polycrystalline
Electrical data (STC: 1000 W/m², AM 1.5, 25 }C)
- Maximum power (Pmax): 250 W
- Power tolerance: 0 / +5 W
- Maximum power voltage (Vmp): 30.1 V
- Maximum power current (Imp): 8.31 A
- Open circuit voltage (Voc): 37.4 V
- Short circuit current (Isc): 8.83 A
- Module efficiency: 15.4%
Electrical data (NOCT: 800 W/m², 20 }C ambient, 1 m/s wind)
- Maximum power: 185 W
- Vmp: 28.2 V / Imp: 6.57 A
- Voc: 35.0 V / Isc: 7.12 A
Temperature characteristics
- Temperature coefficient Pmax: -0.40%/}C
- Temperature coefficient Voc: -0.30%/}C
- Temperature coefficient Isc: +0.04%/}C
- NOCT: 45 ± 2 }C
Mechanical data
- Cell type: polycrystalline 156 x 156 mm, 60 cells (6 x 10)
- Dimensions: 1640 x 992 x 40 mm
- Weight: 19 kg
- Glass: high-transmission low-iron tempered glass
- Frame: silver anodised aluminium alloy
- Backsheet: white
- Junction box: IP65/IP67, with bypass diodes
- Cables: 4 mm², 1000 mm, MC4-compatible connectors
- Mechanical load: up to 5400 Pa
Maximum ratings
- Operating temperature: -40 }C to +85 }C
- Maximum system voltage: 1000 V DC
- Maximum series fuse: 20 A
Certification
- CE, IEC 61215, IEC 61730, PV Cycle
visibile solo dopo il login
| Nome file | Tipo di file |
|---|
Valutazione cliente
ORANGE 60P Easy-In / 250 Wp
5.0
Visualizza
FU 250 M Silk Pro Orange
5.0
Visualizza
KD250GH-4YB2
0.0
Visualizza

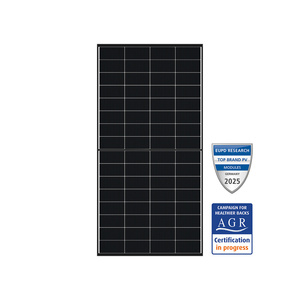

DM260M10T-B32HBT
